产品特点
尼龙铆钉
按压式安装方便，无需借助工具
铆钉接头扣合美观
Plastic rivets
尼龙6/6
工作温度-4°C~130°C

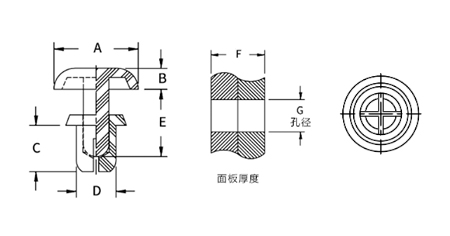

产品规格
| 编号 | 孔径 | 拔力（kg) | 紧固厚度 | AØ(mm) | B(mm) | C(mm) | DØ(mm) | E(mm) |
| HMD3001 | 3.6-3.7 | 12 | 1.2-2.1 | 6.4 | 1.6 | 3.5 | 3.5 | 5.1 |
| HMD3002 | 3.6-3.7 | 12 | 2.1-3 | 6.4 | 1.6 | 4.5 | 0.5 | 6.1 |
| HMD3003 | 3.6-3.7 | 12 | 2.7-3.6 | 6.4 | 1.6 | 5 | 3.5 | 6.1 |
| HMD3004 | 3.6-3.7 | 12 | 41702 | 6.4 | 1.6 | 5.6 | 3.5 | 7.1 |
| HMD3005 | 3.6-3.7 | 12 | 3.7-4.6 | 6.4 | 1.6 | 6 | 3.5 | 7.1 |
| HMD3006 | 3.6-3.7 | 12 | 4.5-5.5 | 6.4 | 1.6 | 7.2 | 3.5 | 9 |
| HMD3007 | 3.6-3.7 | 12 | 5.5-6.5 | 6.4 | 1.6 | 8 | 3.5 | 9.1 |
| HMD3008 | 4.1-4.2 | 20 | 2.5-3.5 | 8 | 1.8 | 5 | 4 | 7.1 |
| HMD3009 | 4.1-4.2 | 20 | 3.5-4.5 | 8 | 1.8 | 6 | 4 | 7.1 |
| HMD3010 | 4.1-4.2 | 20 | 4.5-5.5 | 8 | 1.8 | 7.2 | 4 | 9 |
| HMD3011 | 4.1-4.2 | 20 | 5.5-6.5 | 8 | 1.8 | 8 | 4 | 49 |
| HMD3012 | 4.1-4.2 | 20 | 6.5-7.5 | 8 | 1.8 | 9 | 4 | 11 |
| HMD3013 | 4.1-4.2 | 20 | 7.5-8.5 | 8 | 1.8 | 10 | 4 | 11 |
| HMD3014 | 4.1-4.2 | 20 | 9-10.5 | 8 | 1.8 | 12 | 4 | 14 |
| HMD3015 | 5.1-5.2 | 25 | 1.5-2.5 | 9 | 2.2 | 4.5 | 5 | 6.5 |
| HMD3016 | 5.1-5.2 | 25 | 2.5-3.5 | 9 | 2.2 | 5.6 | 5 | 6.5 |
| HMD3017 | 5.1-5.2 | 25 | 3.5-4.5 | 9 | 2.2 | 6.5 | 5 | 8.5 |
| HMD3018 | 5.1-5.2 | 25 | 4.5-5.5 | 9 | 2.2 | 7.5 | 5 | 8.5 |
| HMD3019 | 5.1-5.2 | 25 | 5.5-6.5 | 9 | 2.2 | 8.5 | 5 | 10.5 |
| HMD3020 | 5.1-5.2 | 25 | 6.5-7.5 | 9 | 2.2 | 9.5 | 5 | 10.5 |
| HMD3021 | 5.1-5.2 | 25 | 7.5-8.5 | 9 | 2.2 | 10.5 | 5 | 12 |
| HMD3022 | 6.1-6.2 | 30 | 2.5-4 | 12 | 2.5 | 6 | 6 | 69 |
| HMD3023 | 6.1-6.2 | 30 | 3.5-5.5 | 12 | 3 | 8 | 6 | 10 |
| HMD3024 | 3.6-3.7 | 12 | 1.2-2.1 | 6.4 | 1.6 | 3.5 | 3.5 | 5.1 |
| HMD3025 | 3.6-3.7 | 12 | 2.1-3 | 6.4 | 1.6 | 4.5 | 0.5 | 6.1 |
| HMD3026 | 3.6-3.7 | 12 | 2.7-3.6 | 6.4 | 1.6 | 5 | 3.5 | 6.1 |
| HMD3027 | 3.6-3.7 | 12 | 41702 | 6.4 | 1.6 | 5.6 | 3.5 | 7.1 |
| HMD3028 | 3.6-3.7 | 12 | 3.7-4.6 | 6.4 | 1.6 | 6 | 3.5 | 7.1 |
| HMD3029 | 3.6-3.7 | 12 | 4.5-5.5 | 6.4 | 1.6 | 7.2 | 3.5 | 9 |
| HMD3030 | 3.6-3.7 | 12 | 5.5-6.5 | 6.4 | 1.6 | 8 | 3.5 | 9.1 |
| HMD3031 | 4.1-4.2 | 20 | 2.5-3.5 | 8 | 1.8 | 5 | 4 | 7.1 |
| HMD3032 | 4.1-4.2 | 20 | 3.5-4.5 | 8 | 1.8 | 6 | 4 | 7.1 |
| HMD3033 | 4.1-4.2 | 20 | 4.5-5.5 | 8 | 1.8 | 7.2 | 4 | 9 |
| HMD3034 | 4.1-4.2 | 20 | 5.5-6.5 | 8 | 1.8 | 8 | 4 | 49 |
| HMD3035 | 4.1-4.2 | 20 | 6.5-7.5 | 8 | 1.8 | 9 | 4 | 11 |
| HMD3036 | 4.1-4.2 | 20 | 7.5-8.5 | 8 | 1.8 | 10 | 4 | 11 |
| HMD3037 | 4.1-4.2 | 20 | 9-10.5 | 8 | 1.8 | 12 | 4 | 14 |
| HMD3038 | 5.1-5.2 | 25 | 1.5-2.5 | 9 | 2.2 | 4.5 | 5 | 6.5 |
| HMD3039 | 5.1-5.2 | 25 | 2.5-3.5 | 9 | 2.2 | 5.6 | 5 | 6.5 |
| HMD3040 | 5.1-5.2 | 25 | 3.5-4.5 | 9 | 2.2 | 6.5 | 5 | 8.5 |
| HMD3041 | 5.1-5.2 | 25 | 4.5-5.5 | 9 | 2.2 | 7.5 | 5 | 8.5 |
| HMD3042 | 5.1-5.2 | 25 | 5.5-6.5 | 9 | 2.2 | 8.5 | 5 | 10.5 |
| HMD3043 | 5.1-5.2 | 25 | 6.5-7.5 | 9 | 2.2 | 9.5 | 5 | 10.5 |
| HMD3044 | 5.1-5.2 | 25 | 7.5-8.5 | 9 | 2.2 | 10.5 | 5 | 12 |
| HMD3045 | 6.1-6.2 | 30 | 2.5-4 | 12 | 2.5 | 6 | 6 | 69 |
| HMD3046 | 6.1-6.2 | 30 | 3.5-5.5 | 12 | 3 | 8 | 6 | 10 |
包装方式
