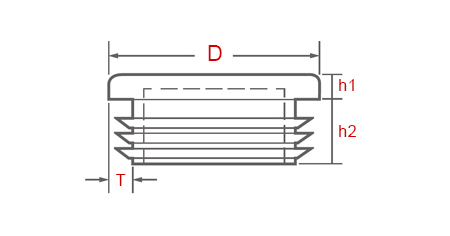

![圆塞尺寸图.jpg](/upfile/2024/06/1717901260946.jpg)

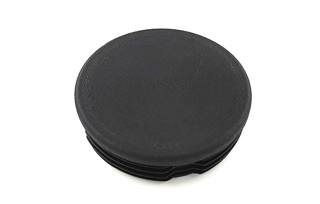

Round Ribbed Inserts
黑色、白色或定制,LDPE
外肋结构使装配方便,配合牢固
遮盖尖锐的管边
编号 |
D(mm) |
D(inch) |
h1(mm) |
h2(mm) |
T(mm) |
更多 |
HRY10 |
10 |
- |
4 |
11.5 |
0.8-2.0 |
详细 |
HRY12 |
12 |
- |
4 |
11.5 |
0.8-2.0 |
详细 |
HRY12.7 |
12.7 |
1⁄2 |
4 |
11.5 |
0.8-2.0 |
详细 |
HRY13 |
13 |
- |
4 |
11.5 |
0.8-2.0 |
详细 |
HRY14 |
14 |
- |
5 |
11.5 |
1.5-2.0 |
详细 |
HRY15 |
15 |
- |
5 |
11.5 |
0.8-2.0 |
详细 |
HRY16 |
16 |
5⁄8 |
5 |
11.5 |
0.8-2.0 |
详细 |
HRY18 |
18 |
- |
5 |
11.5 |
0.8-2.0 |
详细 |
HRY19 |
19 |
3⁄4 |
5 |
11.5 |
0.8-2.0 |
详细 |
HRY20 |
20 |
- |
5 |
11.5 |
0.8-2.0 |
详细 |
HRY21 |
21 |
- |
5 |
11.5 |
0.8-2.0 |
详细 |
HRY22 |
22 |
7⁄8 |
5 |
11.5 |
0.8-2.0 |
详细 |
HRY23 |
23 |
- |
5 |
11.5 |
0.8-2.5 |
详细 |
HRY24 |
24 |
- |
5 |
11.5 |
1.0-2.5 |
详细 |
HRY25 |
25 |
- |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY25.4 |
25.4 |
1 |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY26 |
26 |
- |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY28 |
28 |
- |
5 |
12.4 |
1.0-3.0 |
详细 |
HRY28.6 |
28.6 |
1 1⁄8 |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY30 |
30 |
|
5 |
11.5 |
1.0-3.0 |
详细 |
HRY32 |
32 |
1 1⁄4 |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY34 |
34 |
- |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY35 |
35 |
- |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY37 |
37 |
- |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY38 |
38 |
1 1⁄2 |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY40 |
40 |
- |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY41.3 |
41.3 |
1 5⁄8 |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY42 |
42 |
- |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY44.4 |
44.4 |
1 3⁄4 |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY45 |
45 |
- |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY47.6 |
47.6 |
1 7⁄8 |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY50 |
50 |
- |
5 |
14.5 |
1.0-3.0 |
详细 |
HRY50.8 |
50.8 |
2 |
5 |
14.5 |
1.0-3.0 |
详细 |
HRY55 |
55 |
- |
5 |
11.5 |
1.0-3.0 |
详细 |
HRY60 |
60 |
- |
5 |
14.5 |
1.0-3.0 |
详细 |
HRY63.5 |
63.5 |
2 1⁄2 |
5 |
14.5 |
1.0-3.0 |
详细 |
HRY63.5-2 |
63.5 |
2 1⁄2 |
6 |
20 |
2.0-4.0 |
详细 |
HRY65 |
65 |
- |
5 |
14.5 |
1.0-3.0 |
详细 |
HRY70 |
70 |
- |
5 |
21 |
2.0-4.5 |
详细 |
HRY75 |
75 |
- |
6 |
22 |
2.0-4.0 |
详细 |
HRY76.2 |
76.2 |
3 |
6 |
22 |
2.0-4.0 |
详细 |
HRY80 |
80 |
- |
4 |
21 |
1.5-3.0 |
详细 |
HRY85 |
85 |
- |
6 |
21 |
1.5-4.0 |
详细 |
HRY90 |
90 |
|
6 |
21 |
1.5-4.0 |
详细 |
HRY95 |
95 |
- |
6 |
21 |
1.5-4.0 |
详细 |
HRY100 |
100 |
- |
6 |
28 |
2.0-4.5 |
详细 |
HRY105 |
105 |
- |
6 |
28 |
2.0-4.5 |
详细 |
HRY110 |
110 |
- |
6 |
28 |
2.0-4.5 |
详细 |
HRY120 |
120 |
- |
6 |
28 |
2.0-4.0 |
详细 |
