带柄、拉手柔性保护帽,软性保护盖,PVC保护套
Pull-Tab-Flexi-caps
尤其适用于需要多重保护的场合
便于拆除的拉手柄

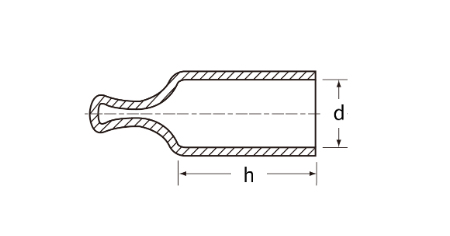

编号 | 适用螺纹 公制 | 适用螺纹 BSP | 适用螺纹 UNF | d (mm) | h (mm) |
HPVCL-0036-013 | M4 | - | - | 3.6 | 13 |
HPVCL-0048-013 | M4 | - | - | 4.8 | 13 |
HPVCL-0053-013 | M6 | - | 7⁄32" | 5.3 | 13 |
HPVCL-0061-013 | - | - | 1⁄4" | 6.1 | 13 |
HPVCL-0075-013 | - | - | - | 7.5 | 13 |
HPVCL-0075-025 | - | - | - | 7.5 | 25 |
HPVCL-0077-013 | M8 | - | 5⁄16" | 7.7 | 13 |
HPVCL-0077-025 | - | - | - | 7.7 | 25 |
HPVCL-0087-013 | - | - | - | 8.7 | 13 |
HPVCL-0093-013 | M10 | 1⁄8" | 3⁄8" | 9.3 | 13 |
HPVCL-0093-025 | - | - | - | 9.3 | 25 |
HPVCL-0097-013 | - | - | - | 9.7 | 13 |
HPVCL-0097-025 | - | - | - | 9.7 | 25 |
HPVCL-0108-013 | - | - | 7⁄16" | 10.8 | 13 |
HPVCL-0108-025 | - | - | - | 10.8 | 25 |
HPVCL-0111-013 | - | - | - | 11.1 | 13 |
HPVCL-0111-025 | - | - | - | 11.1 | 25 |
HPVCL-0119-013 | M12 | - | 1⁄2" | 11.9 | 13 |
HPVCL-0119-025 | - | - | - | 11.9 | 25 |
HPVCL-0124-013 | - | 1⁄4" | 1⁄2" | 12.4 | 13 |
HPVCL-0124-025 | - | 1⁄4" | 1⁄2" | 12.4 | 25 |
HPVCL-0132-013 | M14 | - | 17⁄32" | 13.2 | 13 |
HPVCL-0132-025 | - | - | 13.2 | 25 | |
HPVCL-0143-025 | M15 | - | 9⁄16" | 14.3 | 25 |
HPVCL-0153-013 | M16 | - | - | 15.3 | 13 |
HPVCL-0153-025 | - | - | - | 15.3 | 25 |
HPVCL-0159-025 | - | 3⁄8" | 5⁄8" | 15.9 | 25 |
HPVCL-0163-013 | M18 | - | 11⁄16" | 16.3 | 13 |
HPVCL-0163-025 | - | - | - | 16.3 | 25 |
HPVCL-0174-013 | M18 | - | - | 17.4 | 13 |
HPVCL-0174-025 | M18 | - | - | 17.4 | 25 |
HPVCL-0188-013 | M20 | - | 3⁄4" | 18.8 | 13 |
HPVCL-0188-025 | - | - | - | 18.8 | 25 |
HPVCL-0200-013 | - | - | - | 20 | 13 |
HPVCL-0200-025 | - | - | - | 20 | 25 |
HPVCL-0206-013 | M22 | 1⁄2" | 13⁄16" | 20.6 | 13 |
HPVCL-0206-025 | - | - | 20.6 | 25 | |
HPVCL-0220-025 | - | 5⁄8" | 7⁄8" | 22 | 25 |
HPVCL-0238-025 | - | - | - | 23.8 | 25 |
HPVCL-0246-013 | M25 | - | - | 24.6 | 13 |
HPVCL-0246-025 | M25 | - | - | 24.6 | 25 |
HPVCL-0251-025 | M26 | - | 1” | 25.1 | 25 |
HPVCL-0269-025 | - | - | 26.9 | 25 | |
HPVCL-0286-025 | M30 | 7⁄8" | 11⁄8" | 28.6 | 25 |
HPVCL-0286-038 | M30 | 7⁄8" | 11⁄8" | 28.6 | 38 |
HPVCL-0312-038 | M32 | 1” | 11⁄4" | 31.2 | 38 |
HPVCL-0349-025 | M35 | - | 13⁄8" | 34.9 | 25 |
HPVCL-0349-038 | M35 | - | 13⁄8" | 34.9 | 38 |
HPVCL-0381-038 | M39 | - | 11⁄2" | 38.1 | 38 |
HPVCL-0381-050 | M39 | - | 11⁄2" | 38.1 | 50 |
HPVCL-0408-038 | - | - | 15⁄8" | 40.8 | 38 |
HPVCL-0445-038 | M45 | 13⁄8" | - | 44.5 | 38 |
HPVCL-0445-050 | M45 | 13⁄8" | - | 44.5 | 50 |
HPVCL-0508-050 | - | - | 2” | 50.8 | 50 |
