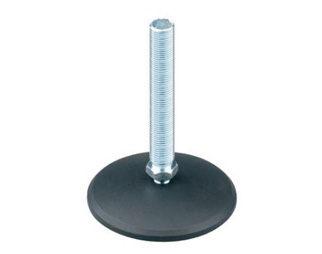

标准机械调节脚
Standard Machine Feet
尼龙底座/镀锌碳钢螺栓
适用于自动化传输设备等
建议最大载荷:900KG
重型承重能力
最大倾斜20度
编号 | 螺纹尺寸 | 底座直径mm | 螺纹长度mm |
HTJ2001 | M8 | 40 | 25 |
HTJ2002 | M8 | 40 | 40 |
HTJ2003 | M8 | 40 | 80 |
HTJ2004 | M8 | 50 | 40 |
HTJ2005 | M8 | 50 | 60 |
HTJ2006 | M8 | 50 | 80 |
HTJ2007 | M10 | 50 | 45 |
HTJ2008 | M10 | 50 | 70 |
HTJ2009 | M10 | 50 | 90 |
HTJ2010 | M10 | 60 | 45 |
HTJ2011 | M10 | 60 | 70 |
HTJ2012 | M10 | 60 | 125 |
HTJ2013 | M12 | 60 | 66 |
HTJ2014 | M12 | 60 | 80 |
HTJ2015 | M12 | 60 | 100 |
HTJ2016 | M12 | 60 | 125 |
HTJ2017 | M12 | 60 | 150 |
HTJ2018 | M12 | 80 | 66 |
HTJ2019 | M12 | 80 | 100 |
HTJ2020 | M12 | 80 | 125 |
HTJ2021 | M12 | 80 | 150 |
HTJ2022 | M16 | 80 | 66 |
HTJ2023 | M16 | 80 | 100 |
HTJ2024 | M16 | 80 | 150 |
HTJ2025 | M16 | 100 | 66 |
HTJ2026 | M16 | 100 | 100 |
HTJ2027 | M16 | 100 | 125 |
HTJ2028 | M16 | 100 | 150 |
HTJ2029 | M16 | 100 | 200 |
HTJ2030 | M16 | 120 | 150 |
HTJ2031 | M16 | 120 | 200 |
HTJ2032 | M20 | 120 | 125 |
HTJ2033 | M20 | 120 | 150 |
HTJ2034 | M20 | 120 | 200 |
HTJ2035 | M24 | 120 | 200 |
HTJ2036 | M24 | 120 | 250 |
